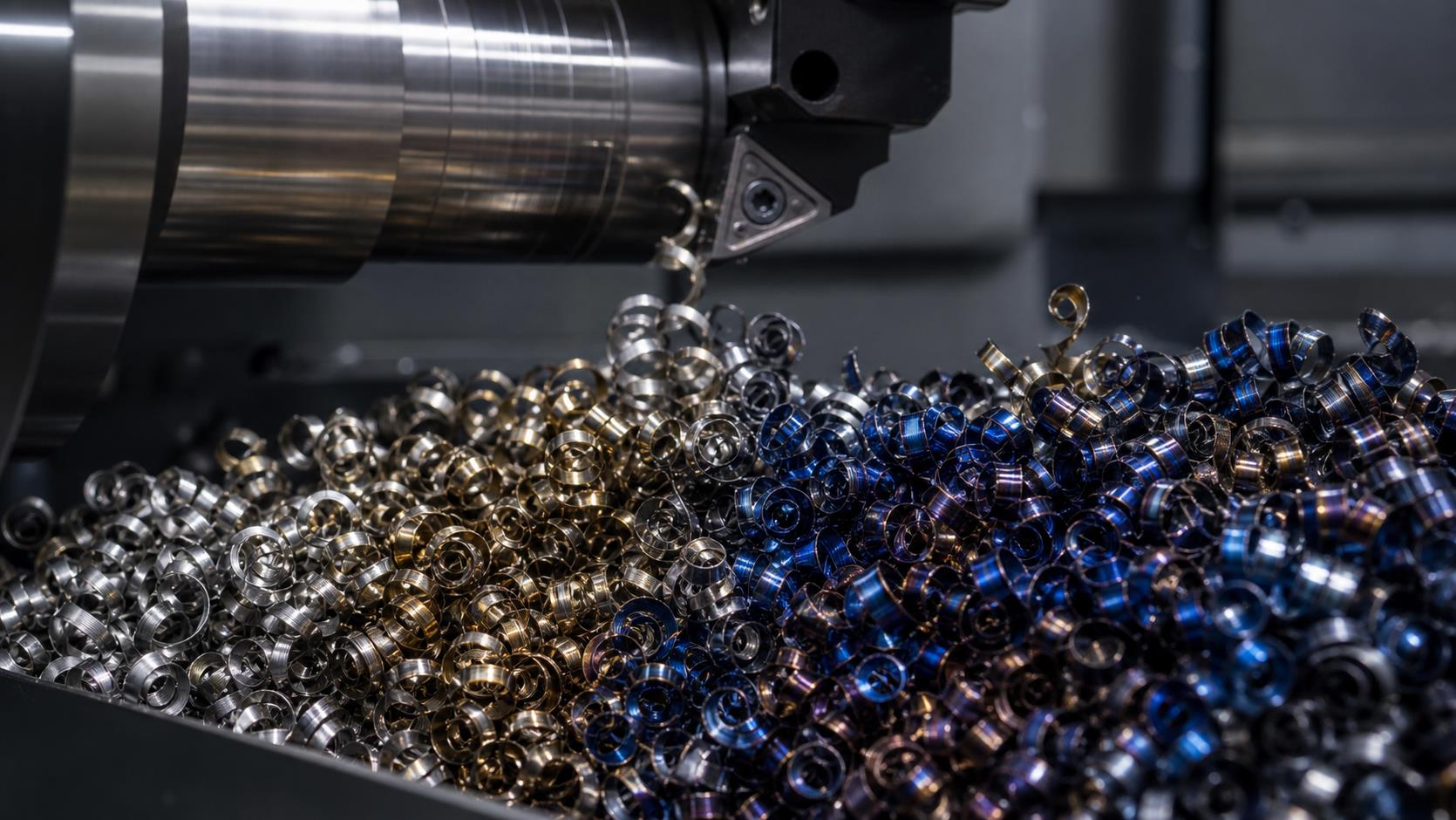

In metal cutting, experienced machinists often observe the color of chips to estimate cutting temperature and evaluate machining conditions. But can chip color really reveal the actual cutting temperature?
Chip color is not a precision temperature measurement. However, in steel machining under normal dry cutting conditions, it remains a useful practical reference for judging heat generation, cutting efficiency, parameter selection, and the progression of tool wear.
The Relationship Between Chip Color and Cutting Temperature
The cutting temperature commonly discussed in machining refers to the average temperature generated during chip formation. In dry machining, temperatures can rise from approximately 200°C to more than 500°C, depending on cutting speed, feed rate, depth of cut, workpiece material, tool geometry, tool material, and cooling conditions.
As steel chips become hotter, thin oxide layers form on their surfaces and interact with light, producing visible temper colors. A commonly observed progression is:
Silver white
Light yellow
Dark yellow
Red
Dark blue
Blue
Blue-gray
Gray-white
Purple-black
Important: This sequence is a practical guide for steel chips in dry cutting. It is not universal for every alloy, coating, or coolant condition.
Can Chip Color Be Used to Adjust Cutting Parameters?
Experienced CNC machinists often use chip appearance as a quick first check when optimizing an operation. The observation should be considered alongside sound, vibration, surface finish, tool wear, and dimensional results.
Blue or Blue-Purple
Often indicates a productive cutting condition for carbide tools, with effective heat transfer into the chip.
Silver or Yellow
May indicate relatively low cutting heat and that the tool's available capability is not fully utilized.
Blue-Gray
May suggest excessive cutting speed, feed, or depth of cut and should prompt closer inspection.
For many carbide-tool steel operations, purple chips can be reasonable because much of the heat is being carried away by the chip. The correct target still depends on the tool manufacturer's recommendations and the specific machining setup.

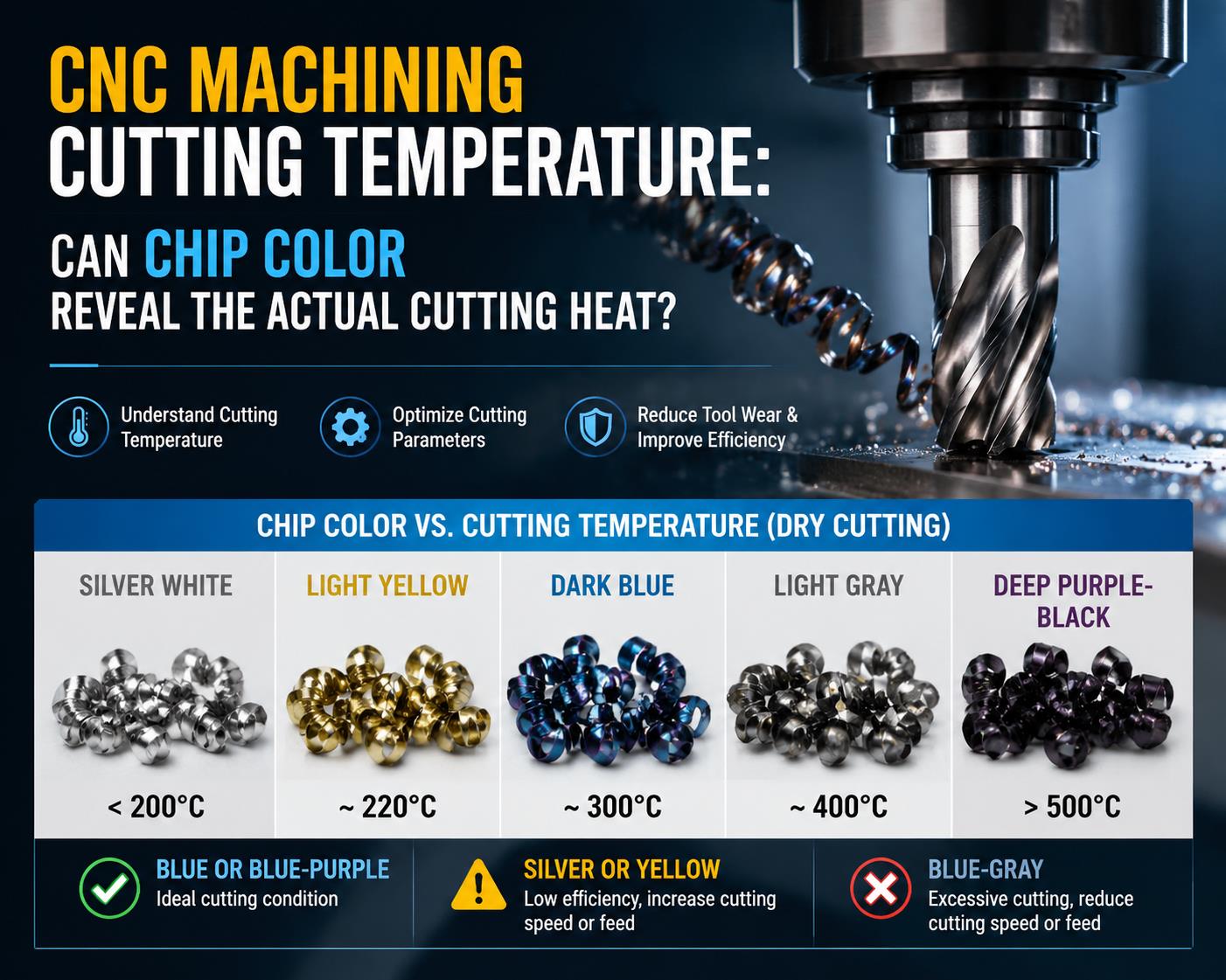

Chip Color vs. Cutting Temperature Reference Table
| Steel Chip Color | Approximate Temperature | General Interpretation |
|---|---|---|
| Silver white | Below 200°C | Relatively low heat |
| Light yellow | Around 220°C | Moderate heat begins |
| Dark blue | Around 300°C | Higher cutting heat |
| Light gray | Around 400°C | Very high heat exposure |
| Deep purple-black | Above 500°C | Extreme chip temperature |
Actual temperatures can vary considerably with material composition, chip thickness, tool coating, cutting parameters, coolant, and observation conditions.
Why Does Chip Color Change During CNC Machining?
Most of the mechanical energy used in cutting is converted into heat. The three primary sources are:
Plastic deformation of the workpiece material in the shear zone
Friction between the cutting tool and the flowing chip
Friction between the tool flank and the newly machined surface
As the chip temperature rises, oxide films develop on its surface. Differences in film thickness change how light is reflected, producing the familiar yellow, blue, purple, gray, and black appearances.
Because chips carry a substantial portion of the cutting heat away from the tool and workpiece, their color can offer useful clues about cutting temperature, energy utilization, tool wear, and whether the machining parameters are appropriate.
Special Considerations for High-Speed Steel Tools
Chip-color interpretation depends strongly on the cutting tool material. High-speed steel (HSS) has lower hot-hardness capability than modern carbide, so the desirable chip color range is generally cooler.
For HSS tools, the preferred chip colors are usually:
Silver white
Light yellow
If chips produced by an HSS tool become blue, the cutting speed or feed rate should generally be reviewed and may need to be reduced to limit excessive heat and accelerated wear.
Chip Color Is Useful—but It Has Limits
Chip color should never be treated as a substitute for accurate temperature measurement or complete process monitoring. Several factors can change the observed color independently of the true peak cutting-zone temperature:
Workpiece alloy composition
Tool material and coating
Coolant or minimum-quantity lubrication
Workshop lighting conditions
Chip thickness and cooling rate
Time between cutting and observation
For reliable CNC process control, combine chip observation with tool-wear inspection, surface-finish evaluation, cutting-force or spindle-load monitoring, dimensional checks, and the tool manufacturer's recommended cutting data.
Practical Chip Inspection Checklist
Confirm the workpiece material and tool grade
Check whether cutting is dry or cooled
Observe color under consistent lighting
Inspect chip shape and thickness
Look for built-up edge or chip welding
Check the cutting edge for wear or chipping
Evaluate workpiece surface finish
Verify dimensional stability and spindle load
Frequently Asked Questions
Do blue chips always mean the cutting temperature is too high?
No. With suitable carbide tools in dry steel machining, blue or blue-purple chips may indicate that heat is being carried away efficiently. The tool grade, coating, workpiece, and cutting data must also be considered.
Are purple chips acceptable when machining steel?
They can be acceptable under normal dry cutting conditions with an appropriate carbide tool. However, verify tool wear, surface finish, machine load, and the tool supplier's recommendations.
Can chip color measure the exact cutting temperature?
No. Chip color provides only an approximate qualitative indication. Accurate temperature measurement requires appropriate sensors, thermal imaging, or specialized experimental methods.
Why are chips sometimes silver even at productive cutting speeds?
Coolant, chip thickness, alloy composition, rapid cooling, and tool geometry can all affect oxidation and visible color. Silver chips do not automatically prove that the process is too cold.
Should blue chips be avoided with HSS tools?
Generally, yes. Blue chips may indicate excessive heat for high-speed steel, so cutting speed and feed should be reviewed to protect the tool from rapid softening and wear.
Conclusion
In CNC machining, steel chip color provides valuable clues about cutting temperature, heat transfer, tool condition, and parameter selection. Skilled machinists can use these changes to make a quick initial assessment of whether an operation is cutting efficiently.
However, stable machining requires a complete understanding of cutting speed, feed, depth of cut, tool geometry, workpiece material, and cooling conditions. Combining chip observation with proper process monitoring helps manufacturers improve tool life, machining efficiency, surface finish, and overall CNC machining quality.
